3 panel 100W 12V (Solar) + 3 sets 12V 60AH (Battery) provide a infrared PTZ speed dome camera for 3-4 days (Continuous rainy weather) | ||||
Package Included | Solar Panel Specifications | Qty | ||
100W Solar Panel | 1.Type: Monocrystalline silicon; 2.Power: up to 100W 3.Working range: -40°-85°; 4. Working voltage: 18V 5.Frame material: high quality aluminum alloy 6.Conversion performance: 18%; 7.Dimensions: 150*54cm 8.Weight: 8.3KG; 9.Service life: >25 years | 3 | ||
Ternary lithium battery | 12V 60AH ternary polymer lithium battery, with perfect protection circuit, overshoot protection, over discharge protection, short circuit protection, over current protection, high temperature protection. High energy density, small size, no need to bury, long life, more than 1000 charge and discharge times. | 3 | ||
Digital display controller: | Intelligent digital display, working status at a glance, support the maximum charge and discharge current 30A 12V overshoot, anti-over-discharge. Trickle charging to extend battery life. | 1 | ||
Boost power supply: | 12V boost 24V power supply for 24V dome | 1 | ||
Stainless steel waterproof box: | Standard 40*50 cm stainless steel equipment box, used to place batteries, controllers, switches and other accessories, send a pole bracket, to prevent battery plug-in, better protect the battery. | 1 | ||
Solar panel bracket: | Solar panel double board bracket set + single board bracket set (can be pole, roof, ground multiple installation) | 1 | ||
Comes with accessories: | The solar panel includes a custom lengthened 3 meter cable (no need to manually wire), 12V lengthened 1 meter DC line, and the bridge uses POE power supply module. The battery board is assembled with a wrench and the controller is mounted with a screwdriver. | |||

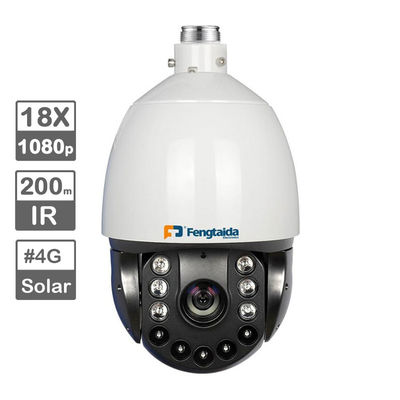

Dome type | IRS-001 Series High Definition IP Speed Dome Specifications | ||||||||||||
FTD-IRS-2122 (18X) | |||||||||||||
Network | Network Interface | Ethernet 10/100Base-T (RJ-45) | |||||||||||
Network Protocol | TCP/IP，HTTP，NTP，IGMP，DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P | ||||||||||||
Compatibility | Support Hikvision,XM,TOPSEE etc center platform management software | ||||||||||||
Interface Protocol | ONVIF2.4/GB28181(Option- Customize) | ||||||||||||
Mobile monitoring | Operating System | Android/IOS | |||||||||||
Camera | Image Sensor | 1/2.8” 2.0M piexls Sony IMX327 CMOS | |||||||||||
Optical Zoom | 18X | ||||||||||||
Minimum Illumination | Color: 0.03Lux at F1.5; B/W: 0.001Lux at F1.5; 0Lux(IR on) | ||||||||||||
WDR | More than 100dB | ||||||||||||
S/N Ratio | More than 48dB(AGC off) | ||||||||||||
Day/Night | Auto(ICR) / Color / B/W | ||||||||||||
Angle of View | 72° ~ 3.8° | ||||||||||||
Electronic Shutter Speed | 1/2 - 1/20,000s | ||||||||||||
Noise Reduction | DNR,3DNR | ||||||||||||
Defog | Support | ||||||||||||
Max. Aperture | F1.5~F2.7 | ||||||||||||
White Balance | Auto, ATW, Indoor, Outdoor, Manual | ||||||||||||
Gain Control | Auto / Manual | ||||||||||||
Video | Compression | H.265/H.264/MJPEG | |||||||||||
Video Interface | 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC (S/N ratio≥ 55dB) | ||||||||||||
Resolution | Main stream:1920x1080,1280x960,1280×720,720×576,640×480 | ||||||||||||
Sub stream:640×480,352×288,320×240,176×144 | |||||||||||||
MJPEG:1920x1080,1280×720 | |||||||||||||
Max Frame Rate | H.265/H.264: 30fps@1920x1080 | ||||||||||||
Bitrate | MainStream:10.0Mbps@VBR/Sub Stream:32Kbps@VBR | ||||||||||||
Audio | Algorithm | G711,PCM | |||||||||||
Input | 1 x Line-In (Mini-stereo, Single Mono) | ||||||||||||
Output | 1 x Line-Out (Mini-stereo, Single Mono) | ||||||||||||
Pan/Tilt | Range | Pan : 360°(Endless)/ Tilt: -10~90° | |||||||||||
Pan/Tilt Speed | Preset Max.:131°/sec | ||||||||||||
Manual : 0.1° ~ 131°/sec (Zoom Proportional) | |||||||||||||
Patrol : 1.4°~131° /sec | |||||||||||||
Preset | 247Presets and 8 presets for special function | ||||||||||||
Patrol Scan | 3 Group Patrol | ||||||||||||
Other Functions | Auto Flip, Auto Parking, Power-up Action & etc | ||||||||||||
Alarm | Alarm Input | 1(ON/OFF signal) | |||||||||||
Alarm Output | 1(ON/OFF signal) | ||||||||||||
Infrared | IR distance | 200m(Max.) | |||||||||||
Wave | 850nm | ||||||||||||
Physical | IP protection | With IP66 | |||||||||||
Operating Temperature | –35℃~60℃ | ||||||||||||
Humidity | 0%~98% (Non condensing) | ||||||||||||
WIFI/4G Module | Extend WIFI /4G module(Option- Customize) | ||||||||||||
Store | TF Card | ||||||||||||
Power Source | AC24V 3A 60Hz/50Hz; | ||||||||||||
Power Consumption | AC24V：8W-45W | ||||||||||||
